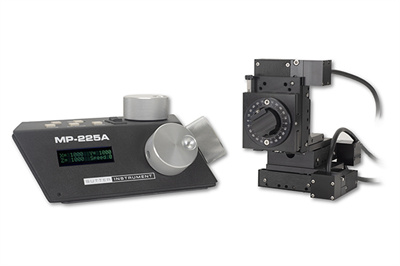

MP225-A微操

In 2002, we created the MP-225 controller and motorized manipulator as a cost effective option for those who didn’t need all the features of the industry standard MP-285. While the MP-225 feature set is less comprehensive than the MP-285's, it includes the most popular features with an efficient user interface. The MP-225 was designed primarily for positioning patch and intracellular recording pipettes. We have retained and refined the features most desired for this type of work.

In 2021, we’ve updated the MP-225 controller design, now called the MP-225A, by integrating the ROE and rack mounted controller box into a single unit to save you valuable space. This extended version of the popular rotary optical encoder (ROE) is the sole input device available with the MP-225A. The MP-225A mechanical continues to use a cable driven mechanical design that utilizes a miniature stepper motor and integral anti backlash gear head. Pre-loaded ball bearing slides provide smooth movement throughout the 25 mm of travel. The methodology for mounting pipette holders and headstages used with the MP-285 has been maintained in the MP-225A to allow for cross compatibility.

A newly added RELATIVE mode allows the user to zero the display at any point, showing travel distance from that point onward.

In addition to the fixed speeds, the MP-225A now has an option to use a logarithmic acceleration algorithm, which allows speed control proportional to the input speed. As the knobs on the ROE are turned faster, acceleration ramps up. This allows for smooth and intuitive motion control of electrode position without the need to stop and change speeds or lift your hand from the controller. When not moving, the motors will power down, reducing electrical noise in the system to unmeasurable levels while also keeping the motors cool to eliminate thermal drift.

The display on the ROE gives position location and, like the MP-285, the MP-225A manipulator has a synthetic 4th axis for diagonal advancement of the pipette; any angle from 0-90 degrees may be selected on the controller. Speed and resolution of movements are easily selected with a multiple position thumbwheel, allowing fast/coarse movement and slow/ultra-fine movement in 10 increments. Two commonly used robotic movements have been incorporated for user convenience: a single button press can initiate a move to a Home position for pipette exchange or to a user defined Work position to quickly relocate the pipette near the recording location.

As always, our technical support team is available to address your particular needs and answer all questions before and after your purchase.

    FEATURES
  • Highly stable for experiments intolerant of pipette drift

  • Submicron (125 nm) minimal resolution for fine movement

  • Convenient toggle switch selects resolution/speed of movement

  • New logarithmic mode automatically adjusts speed

  • 25 mm of motorized travel on all three axes

  • 4th axis for coaxial movement of pipette, any angle from 0-90 can be selected on ROE

  • Programmable Home position for pipette exchange

  • Programmable Work position near recording location

  • Absolute or Relative position display in microns

  • DIP switches on ROE to customize direction of movement produced by turn of ROE knob

  • Modularized, compact design easily adaptable to your setup

  • Universal mounting system for headstage or pipette holder

  • Mounting adapters included with manipulator


TECHNICAL SPECIFICATIONS

Travel
1 in | 25 mm on all three axes

Resolution
125 nm / microstep

Maximum Speed
2.0 mm/sec

Long Term Stability
< 1.0 micron in 2 hours

Drive Mechanism
Integral miniature stepper motor anti-backlash gearhead

Dimensions
Mechanical
4 in x 5.5 in x 6 in | 10 cm x 15 cm x 15.5 cm
ROE Controller
9.25 in x 4.5 in x 3 in | 23.5 cm x 11.43 cm x 7.62 cm

Weight
Manipulator
2.95 lbs | 1.3 kg
ROE Controller
3 lb 12 oz | 1.7 kg

Electrical
115/230 Volts
50/60 Hertz power line

RoHS Compliant

MP-225A CE Certificate
MP-225M CE Certificate

USER MANUAL
MP-225 Operation Manual
Mechanical Drawings

PRODUCT INFORMATION
MP-225A Sales Flyer

TECHNICAL INFORMATION
Sutter Micromanipulator Comparison Chart
MECHANICAL DRAWING: Right Angle Adapter for MPC-200 / MP-285 / MP-225
MECHANICAL DRAWING: Z-axis Verticle Adapter for MPC-200 / MP-285 / MP-225
MECHANICAL DRAWING: Z-axis Horizontal Adapter for MPC-200 / MP-285 / MP-225

VIDEO TUTORIALS
MP-225 | Attaching the Right Angle Adapter
Mounting the Right Angle Adapter on the MP-225/285
