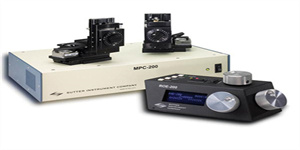

The MPC-385 System consists of the MPC-200 controller and one to four MP-285 micromanipulators.
Neurobiological experiments are becoming more complex. Many require multiple manipulators with control units that quickly become space and/or cost prohibitive. The MPC-200 is the solution you have been asking for. A single controller capable of running 2 to 4 manipulators. Sutter Instrument has taken the simplicity of the MP-225 controller and expanded it to run two manipulators from a single controller/ROE. The MPC-200 works with one or two of our world-renowned mechanicals, the MP-285 (MPC-385), the MP-225 (MPC-325) or the narrow format MP-865 (MPC-365).
If two manipulators aren't enough, a second controller can be daisy chained to allow the single ROE-200 to move up to four manipulators. Thus the system can be easily expanded to control highly sophisticated experiments.
The Sutter MPC-200 is electrically quiet. Unlike the competition, our multi-unit controller employs linear output circuitry. Sutter adds additional manipulators to the same controller without requiring potentially noisy chopper drives.
In all our manipulators, the 4th axis can be set up and changed without the need to connect an external computer to download and configure software. A separate configuration is allowed for each output on this manipulator controller. If desired, each manipulator can approach the prep at a different angle from the horizontal. The 4th axis can be configured between the X and Z axes or the Y and Z axes (useful when manipulator is rotated 90 degrees relative to the preparation).
Faster automated pipette exchange. The MPC-200 has faster “Home” and “Work Position” moves for quicker pipette exchange. Automation is set up and run via the same interface used in the MP-225 controller; however, the speeds of the automated movement are much faster.
Accelerated manual mode. For users who prefer manual pipette exchange we have added “Accelerated Mode” to the ROE. Using Accelerated Mode, the user can make quick manual moves in and out of a setup. Accelerated Mode amplifies the speed attainable in a manual move by smoothly accelerating to the maximum speed during sustained, fast turns of the ROE. Accelerated movement ends as soon as the user stops turning the knob. This mode can be fully disabled for those who feel the need for direct control of the pipette.
One of the first in our line of precision motorized micromanipulators, the MP-285 mechanical offers advanced features found in manipulators costing thousands more. Custom engineered stepping motors, precision cross-roller bearing slides and proprietary worm gear capstan drives form the basis of the watch-like mechanical system. Pipette holders and headstages are securely mounted to the MP-285 with one of our several unique and rigid mounting systems.
The extremely low backlash of the MP-285 removes traditional drawbacks of “open loop” technology and eliminates drift. This allows submicron resolution down to 0.2 microns in the coarse range and down to 63 nanometers in the fine range. With over 1 inch of motorized travel on all three axes, and a user designated 4th axis, the MP-285 allows tremendous range of motion while maximizing resolution.
Additional components can be added at any time, allowing the user to develop a system tailored to his or her particular needs. The controller is self-detecting so there is no need for manual configuration of the components.
Quietest electronics in the industry optimized for single channel recording
Single controller and ROE will run two stepper motor drive manipulators
Self-detecting, daisy-chain capability allows control of four manipulators from one ROE-200
User-friendly interface: single button access to all major functions
Easily configurable virtual 4th axis set without external computer
Accelerated Mode for fast, manual manipulator movement
Easy toggle selection of Mode (speed/resolution, pulsed diagonal, Accelerated Mode)
Display indicates X, Y, Z coordinates, Mode, active manipulator
Robotic Home and Work Position moves for easy automated pipette exchange
Faster robotic moves than previous versions
Definable 4th axis for coaxial pipette movement, angle selected by DIP switches
Simple USB interface
Toggle switch selects which manipulator is connected to input device
LED and display indicate active manipulator
Ultra-low drift, ultra-smooth movement
Low-drift mechanical stability
Resolution and Full Travel
Minimal microstep size is 62.5 nanometers per microstep
Display has single micron resolution
Full travel is 25 mm in each axis
Long Term Stability
< 1.0 micron in 4 hours
15.75 in x 10.75 in x 3.5 in | 40 cm x 27.3 cm x 9 cm
10 in x 6 in x 4 in | 25 cm x 15 cm x 23 cm
6.5 lbs | 3 kg
3.5 lbs | 1.6 kg
50/60 Hertz power line
